DeFelsko Testex Press-O-Film Replica Tape, Coarse, 0.8-2.0 mils (20-50 microns), 50 Replicas

Testex Press-O-Film Coarse replica tape is used to measure lighter blast profiles, from 0.8 to 2.0 mils, on abrasive-blasted steel. Burnish a strip onto the prepared surface, then read the compressed foam with a spring micrometer or PosiTector RTR to get the peak-to-valley height. Inspectors also use it to check X-Coarse readings that fall in the 1.5 to 2.5 mil overlap zone.

Features

• Compressible microfoam on a 50 µm (2 mil) incompressible polyester backing forms a reverse replica of the blasted surface
• Burnish, remove and measure: most replicas take under 30 seconds
• Well suited to round surfaces and other hard-to-reach locations
• Same Coarse foam DeFelsko has sold for decades, now in strip format with an easy-remove corner
• Keep the burnished replica as a permanent physical record of the profile
• High-temperature (HT) formulation rated for surfaces up to 60 °C (140 °F); no expiration date
• Overlaps the X-Coarse grade from 1.5 to 2.5 mils (38-64 µm) for confirming readings

Specifications

Conforms To

• ASTM D4417 (Method C)
• ISO 8503-5
• NACE SP0287
• SSPC-PA 17
• SSPC-SP5, SP6, SP10, SP11-87T
• ASME B46

What's Included

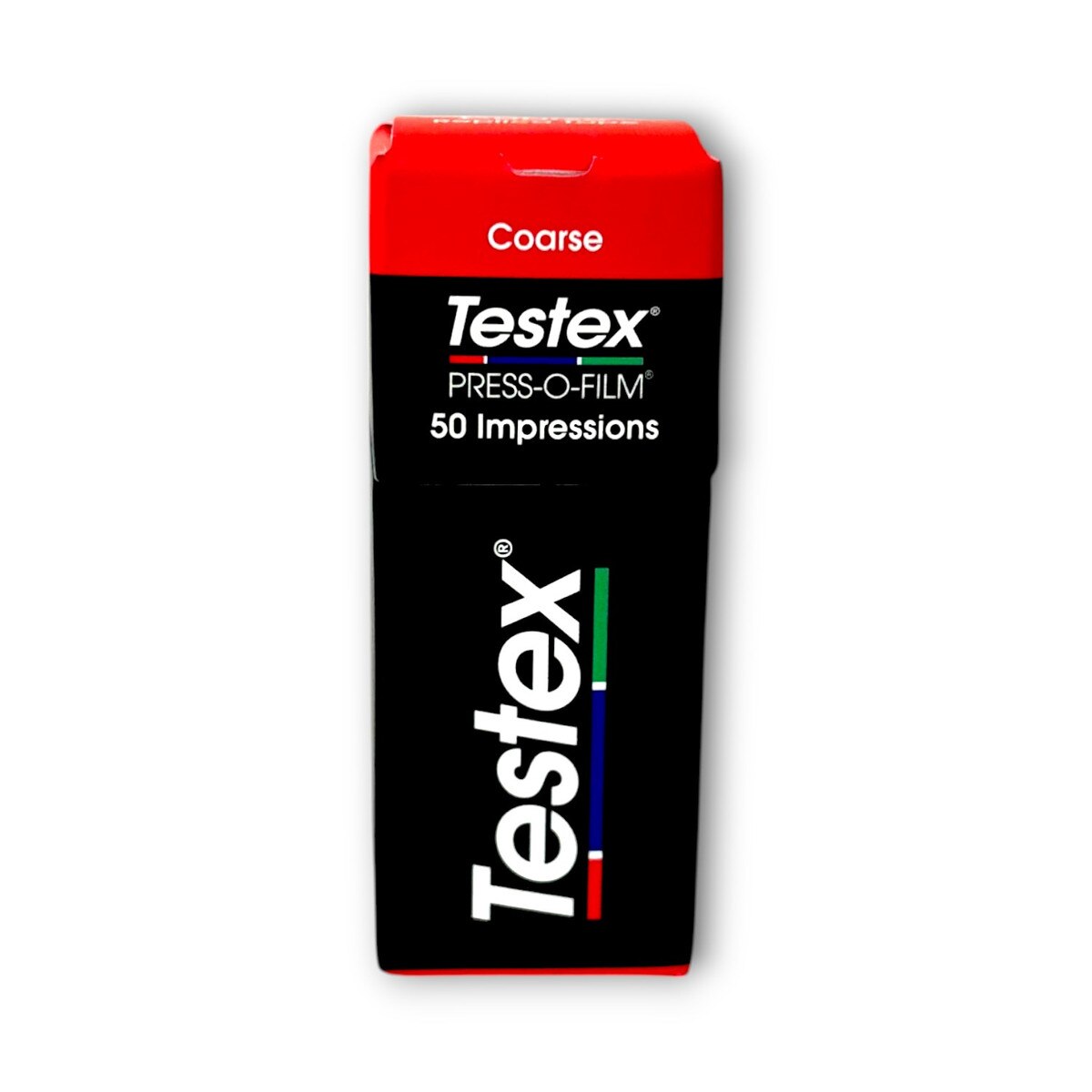

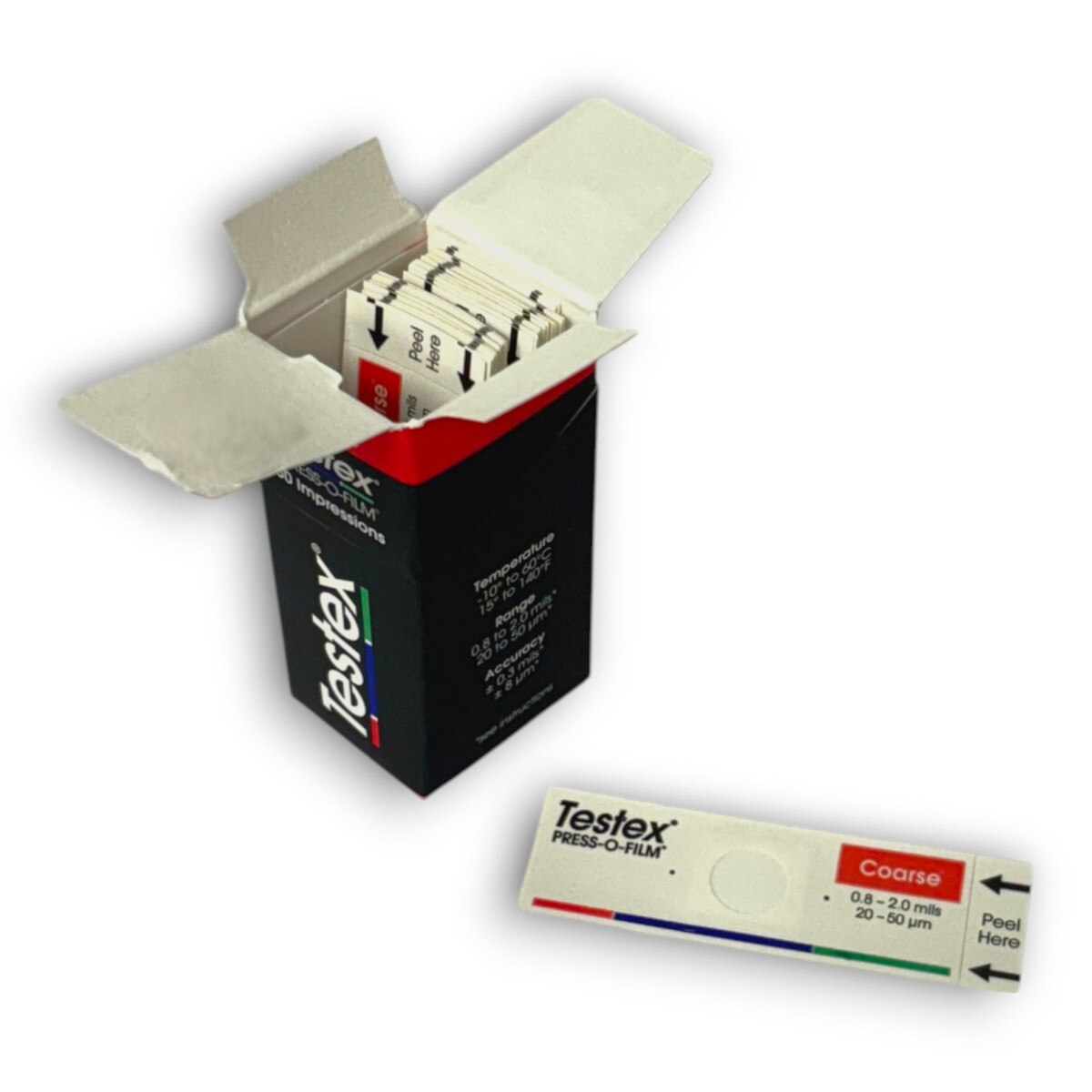

• 50 Coarse replica tape strips in a resealable carton

Compatibility

Measure with the Testex Digital Micrometer (RTM), Testex analog dial micrometers (RTMMIL, RTMMIC and certified versions), or the PosiTector RTR H and RTR 3D replica tape readers. The Testex Digital Micrometer and RTR H apply the Coarse conversion and subtract the 2 mil backing automatically.
