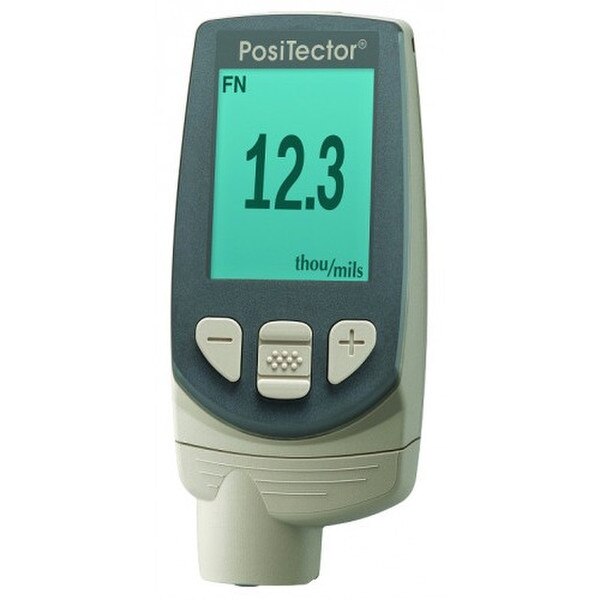

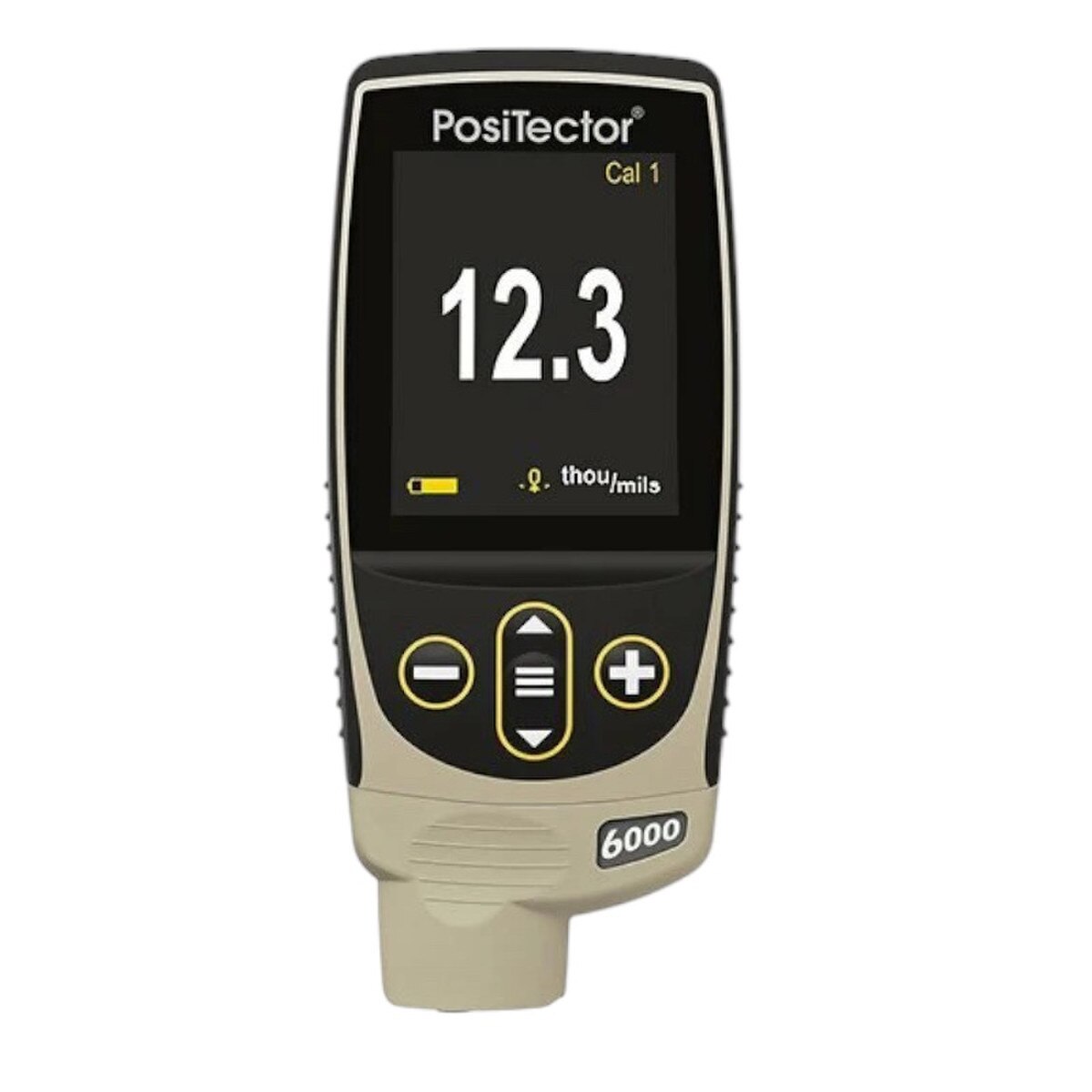

DeFelsko PosiTector 6000 F1 Coating Thickness Gauge, Standard, Ferrous Integral Probe, 0-60 mils
Details
The PosiTector 6000 F1 pairs the Standard PosiTector gauge body with the F probe, an integral probe for measuring non-magnetic coatings (paint, powder coat, galvanizing) on steel and iron. It covers 0-60 mils (0-1500 µm) and suits inspectors, applicators and QC labs that need documented, standards-based dry film thickness readings. Best fit: one-handed spot checks of paint and powder coat on steel and iron in the shop or field.
Features
- Magnetic principle measures non-magnetic coatings on steel and iron

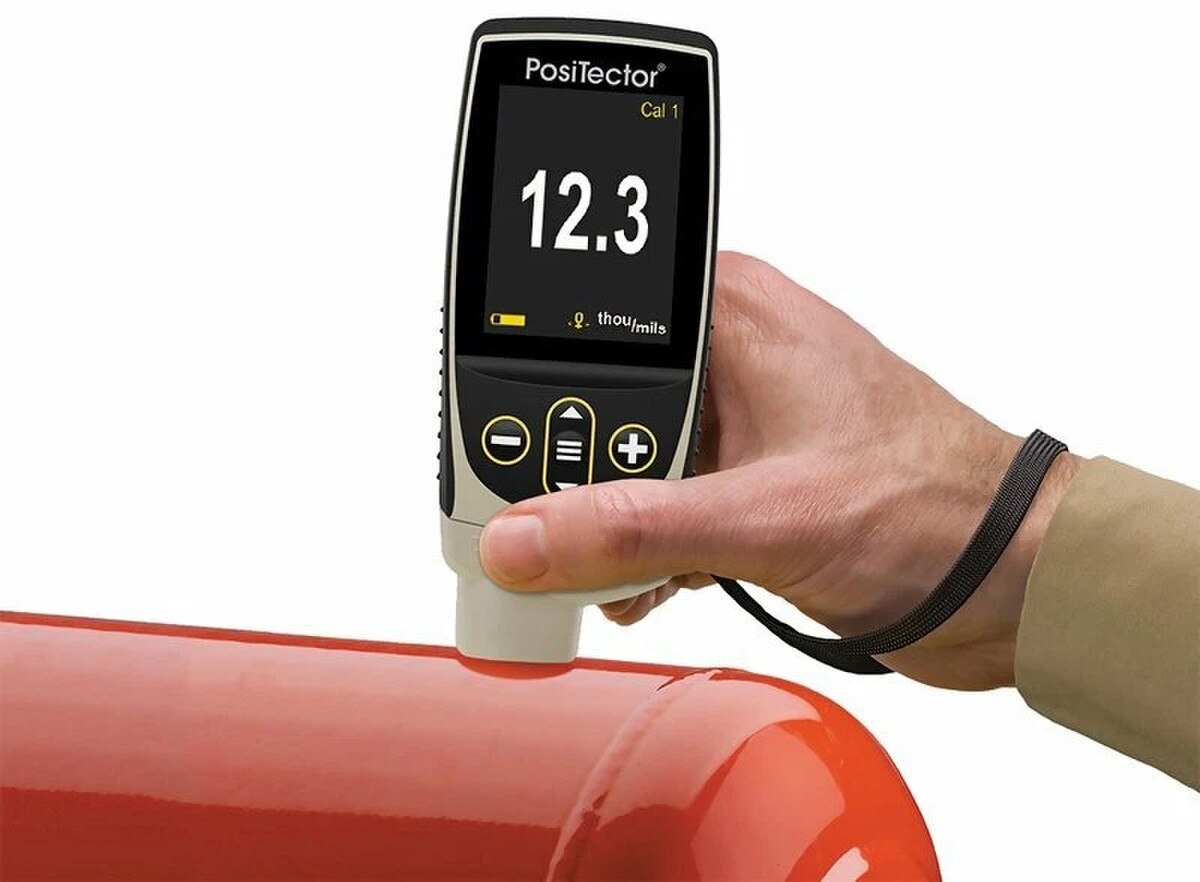

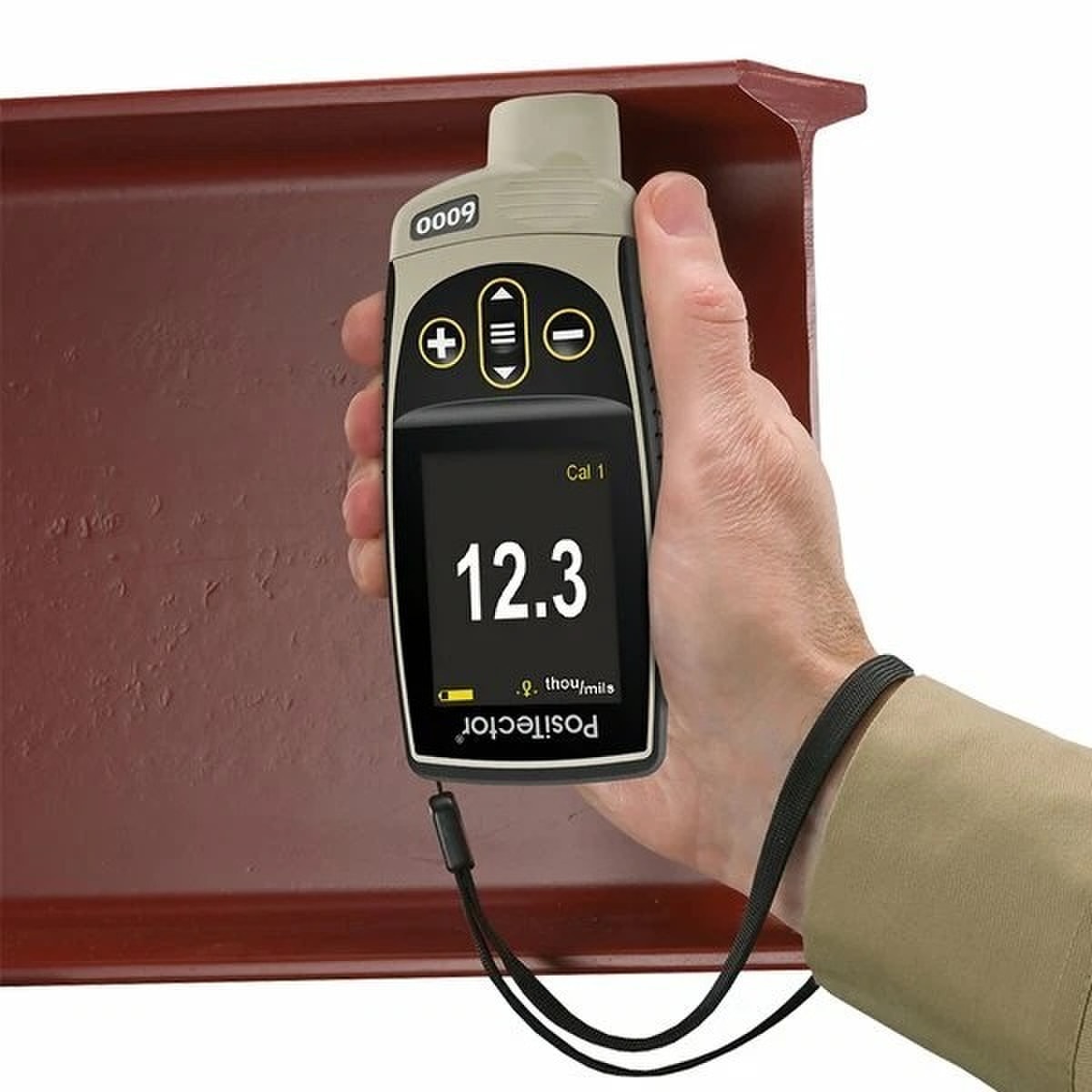

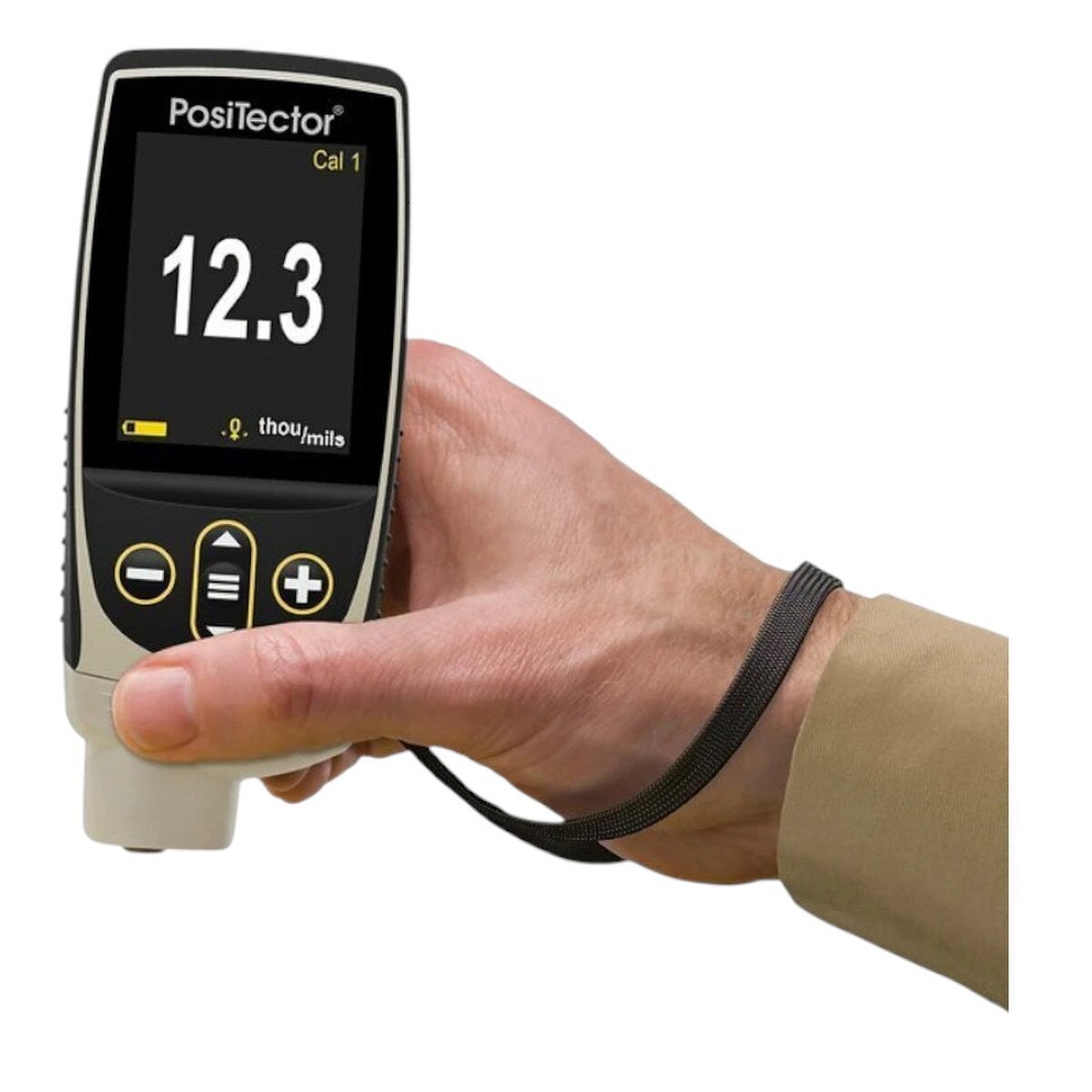

- Removable integral probe sits on top of the gauge for one-handed measuring
- Large 2.8" impact-resistant color touchscreen; 60+ readings per minute, 90+ in FAST mode
- Ready to measure out of the box for most applications, with Long Form Certificate of Calibration traceable to NIST or PTB
- Stores 1,000 readings per probe, date and time stamped, with USB download to PosiSoft software
Specifications
| Spec | Value |
|---|---|
| Probe model | F |
| Substrate | Ferrous (steel, iron) |
| Probe style | Integral (removable, mounts on gauge body) |
| Measuring range | 0-60 mils (0-1500 µm) |
| Accuracy | ± (0.05 mils + 1%) 0-2 mils; ± (0.1 mils + 1%) > 2 mils; ± (1 µm + 1%) 0-50 µm; ± (2 µm + 1%) > 50 µm |
| Probe operating temperature | Up to 50°C (120°F); higher surface temperatures possible with brief contact |
| Gauge body | Standard |
| Reading storage | 1,000 readings per probe |
| Connectivity | USB |
| Display | 2.8" color touchscreen, auto-rotating with Flip Lock |
| Units | mils, microns, mm (switchable) |
| Measurement speed | 60+ readings/min; 90+ in FAST mode |
| Enclosure | IP65 weatherproof, dustproof, water-resistant |
| Power | 3 AAA batteries, over 20 hours continuous use; USB power |
| Body size | 127 x 66 x 25.4 mm (5 x 2.6 x 1 in.), body only |
| Body weight | 137 g (4.9 oz) without batteries, body only |
| Warranty | Two years on gauge body and probe |
| Accuracy note | Fixed value plus a percentage of the actual reading |
Conforms To
- ISO 2178, ISO 2360 and ISO 2808
- ISO 19840
- ASTM B244, B499, D1186, D1400, D7091, E376 and G12
- BS 3900-C5
- SSPC-PA 2
- US Navy NAVSEA PPI 63101-000 and NAVSEA 009-32
- AS 2331.1.4 and AS 3894.3-B

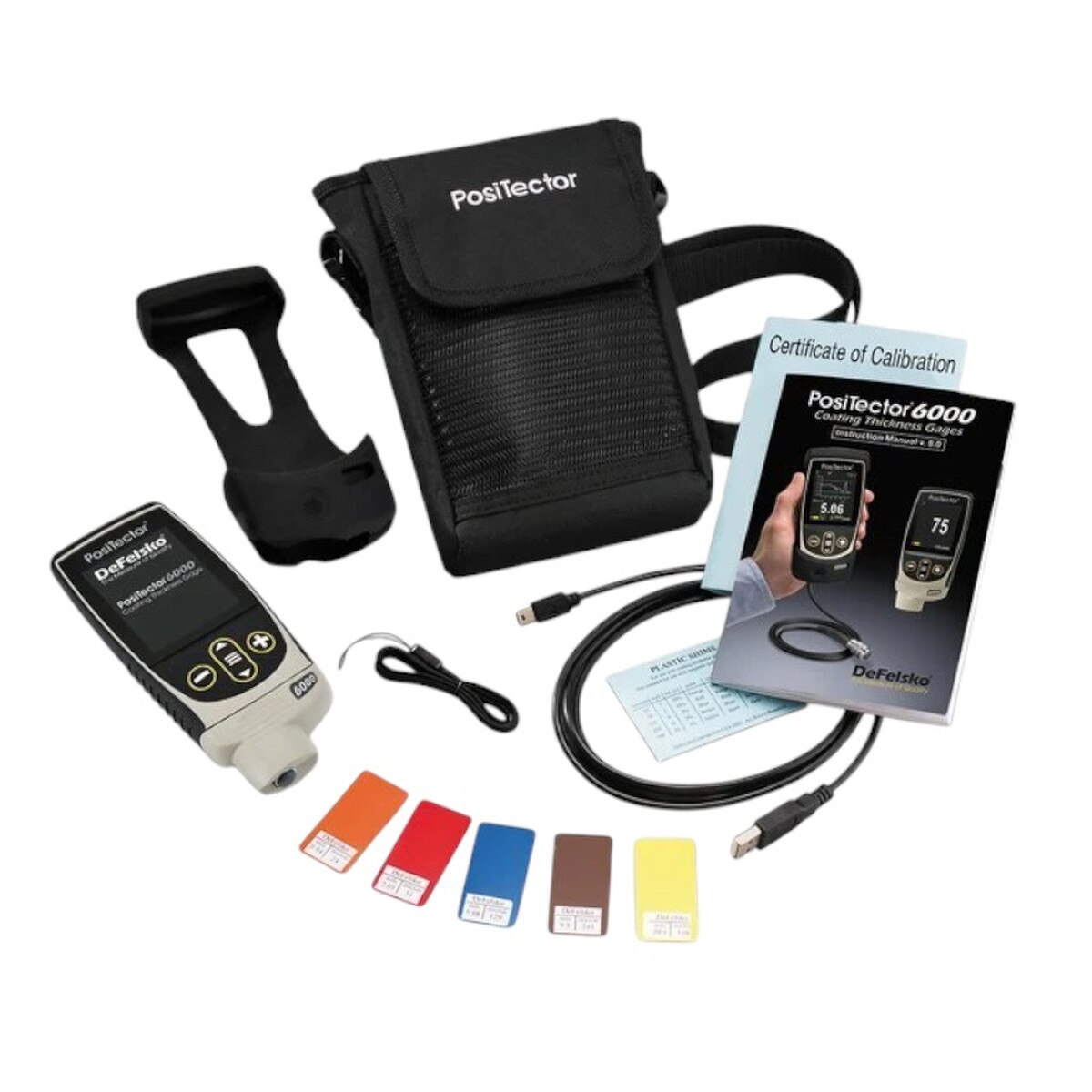

What's Included
- PosiTector Standard gauge body

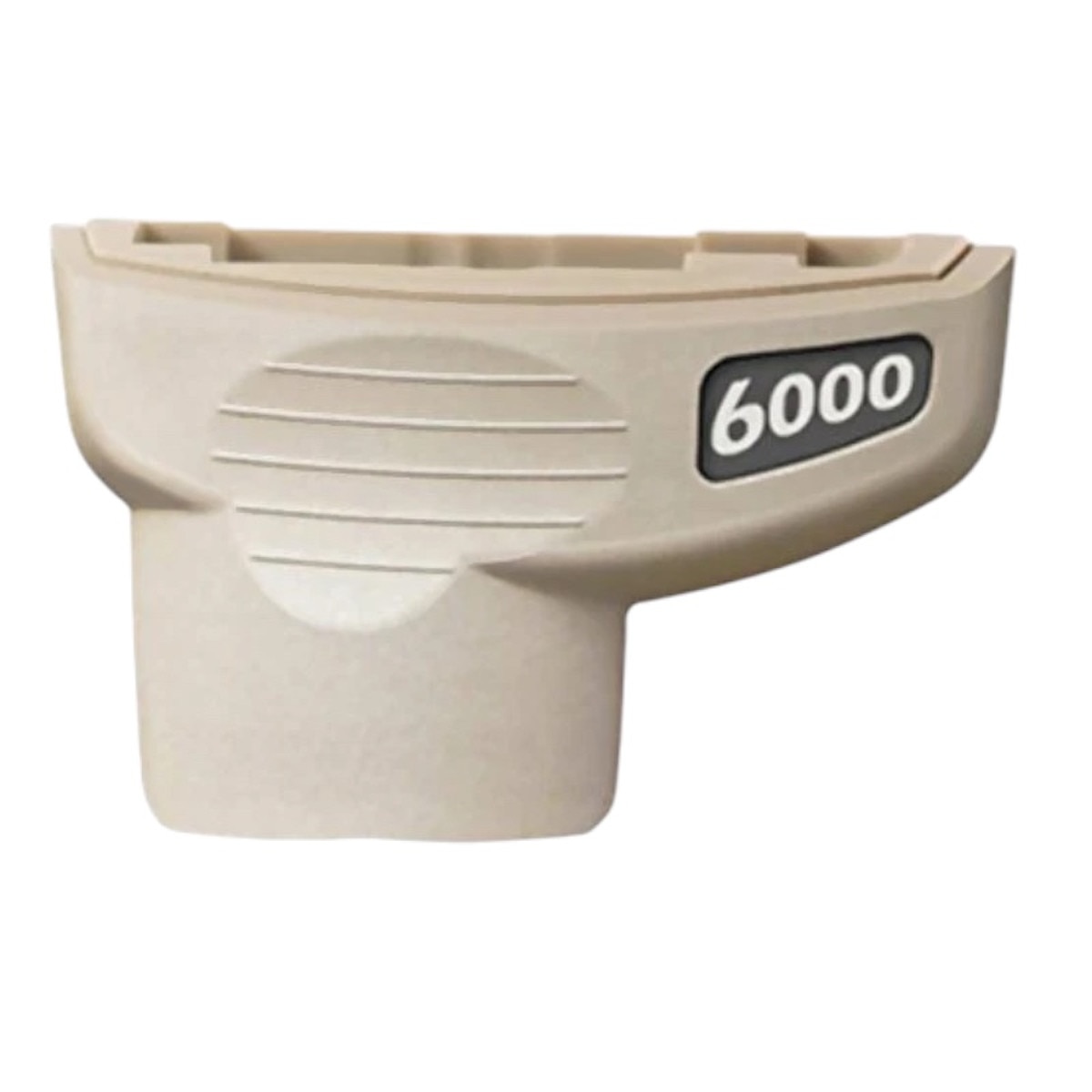

- F probe
- Precision plastic shim(s)
- Protective rubber holster and wrist strap
- 3 AAA alkaline batteries
- Protective lens shield
- Hard case
- USB cable and PosiSoft software
- Long Form Certificate of Calibration traceable to NIST or PTB
- Instructions and two-year warranty
Compatibility

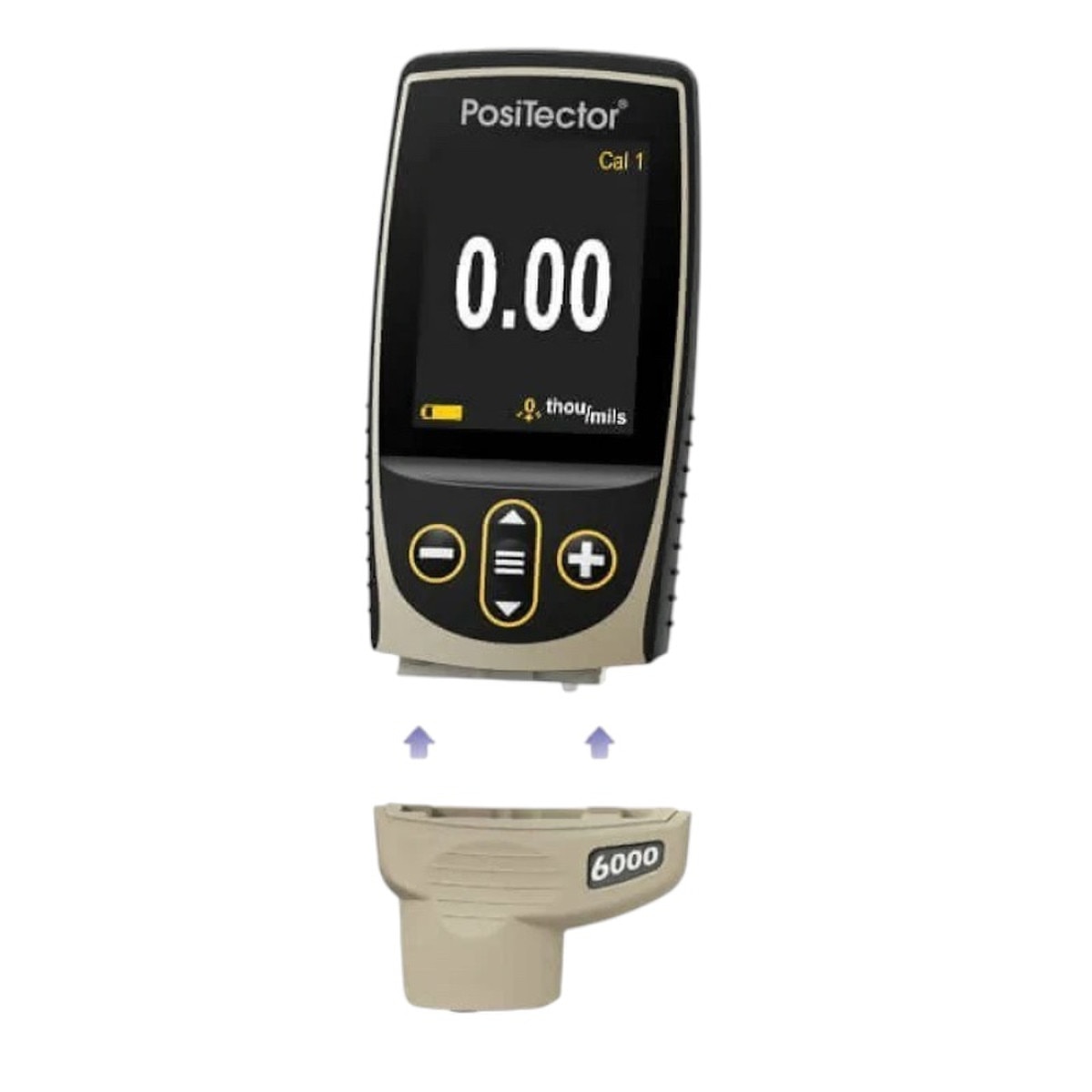

- The included probe is removable, and the gauge body also accepts PosiTector 200, DPM, IRT, SPG, RTR, SST, UTG, SHD, BHI and GLS probes
- The F probe also works with the PosiTector SmartLink and the PosiTector App on iOS or Android
Standard vs. Advanced
The Standard body (model ending in 1) stores 1,000 readings per probe and connects by USB. The Advanced body (model ending in 3) adds 250,000-reading batch memory, live graphing, Prompted Batch Mode, three Scan modes, SSPC-PA 2, ISO 19840 and IMO PSPC 90/10 inspection modes, multiple stored calibration adjustments, WiFi and Bluetooth for the PosiTector App and printer. The Advanced version of this gauge is the F3.
