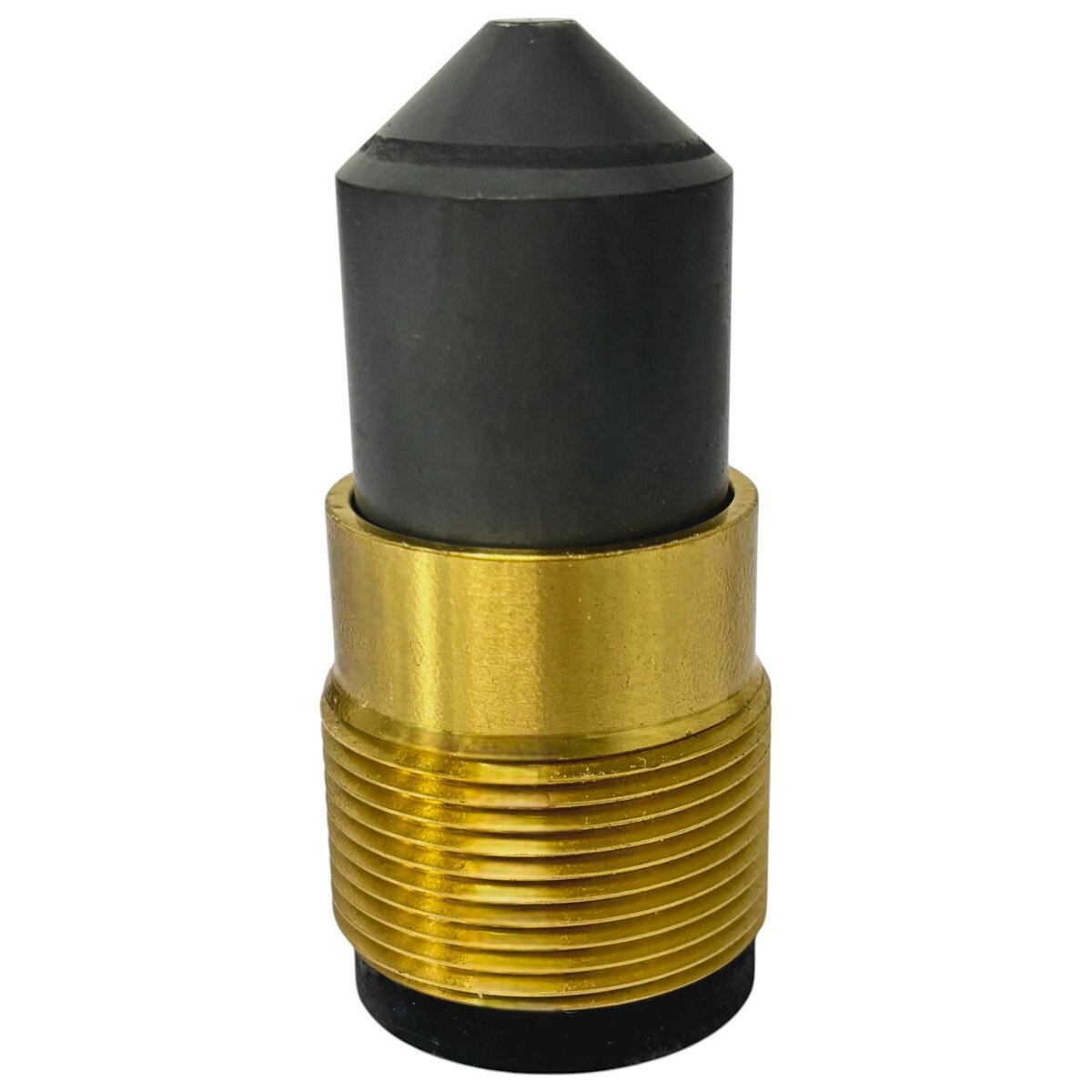

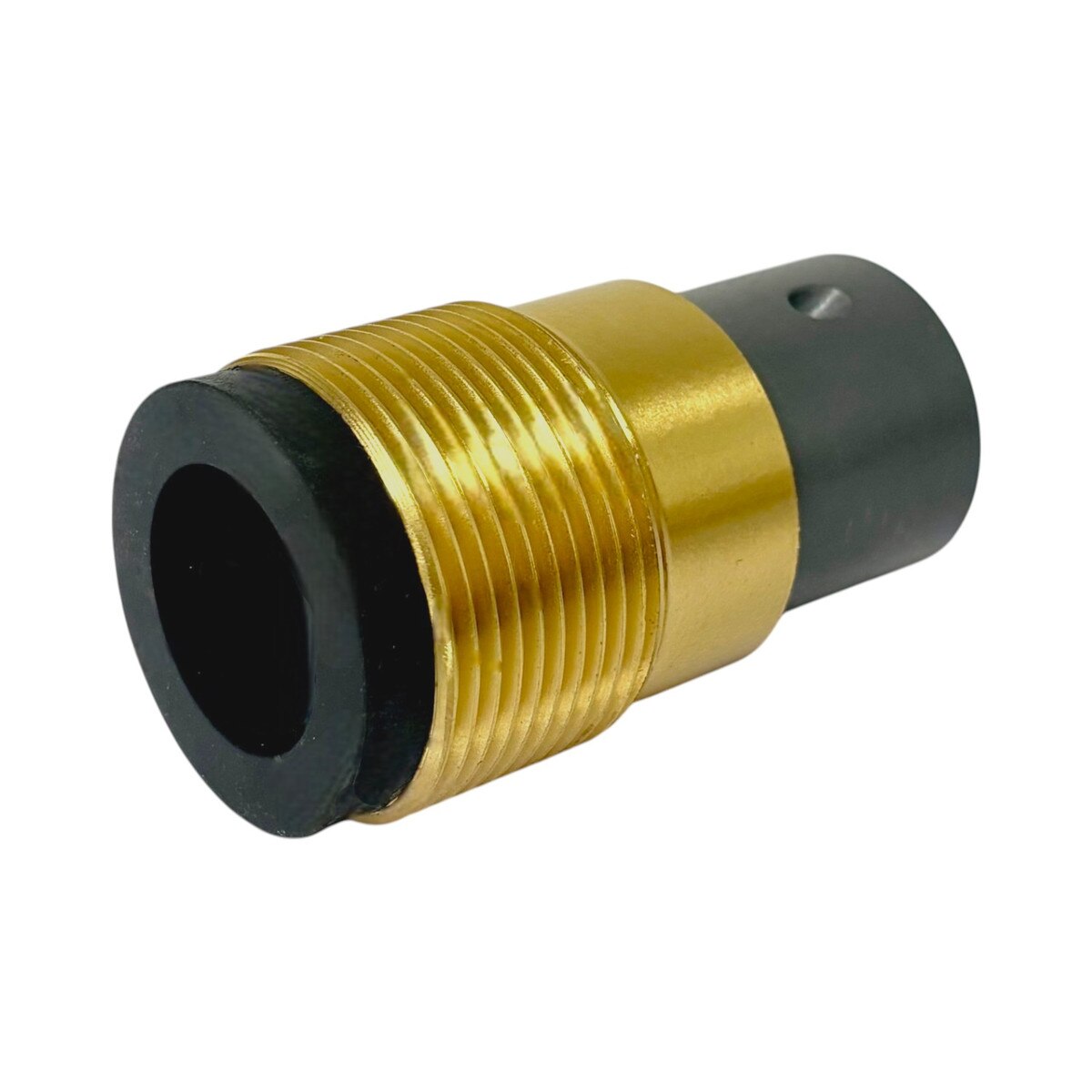

Kennametal Angle Nozzle, T045-3, 3/16" Orifice, 45°, TC

Kennametal Angle Nozzle, T045-3, 3/16" Orifice, 45°, TC

• These nozzles are excellent for getting inside tight places like bridge lattice, behind flanges or inside pipe.
• Available in tungsten carbide, boron carbide, ROCTEC® featuring long life blast outputs between 0° and 125° relative to the input openings.
• Available with single, double, triple or quadruple outlets.
• We have the capability to manufacture additional angle nozzle designs. Please contact us to discuss your requirements.
• Thread style: 1-1/4 – 11-1/2 N.P.S.M.
• Brass threads.

Specifications

• Orifice: 3/16"
• Overall length: 3-1/8"
• Body diameter: 1-9/32"
• Washer ID: 1"
• Carbide grade: GP045
• 1-1/4" Brass Thread, Single Outlet
• Liner material: Tungsten Carbide
• Kennametal order no: 2939649 · Catalog no: B1904530
