Clemco TC Lined Metal Jacketed Nozzles

The Clemco Long Venturi Tungsten Carbide Lined Metal Jacketed Nozzles are high-performance nozzles designed for abrasive blasting applications. These include the CSD, CXD, TXD, and SDX series. Engineered for efficiency and durability, they feature a tungsten carbide liner for excellent wear resistance and an aluminum jacket for protection. The long-venturi design optimizes blasting at greater distances, making them ideal for high-production tasks.

Key Features

Long-Venturi Design: Allows high-production blasting at 18-24 inches for hard surfaces and 30-36 inches for loose paint or soft surfaces.
Tungsten Carbide Liner: Provides approximately 300 hours of life with expendable abrasives.
Aluminum Jacket: Enhances durability and handles rough use.
Orifice Sizing: Available in 1/16-inch increments (e.g., No. 3 = 3/16-inch).
Series Variations: Different threads and entries for compatibility with various hoses and holders.

Series Overview

Series	Entry Diameter	Mounting Thread	Hose Compatibility	Washer	Notes
CSD	1"	1-1/4" fine	1" ID, 1-7/8" OD	NW-4	Standard for smaller hoses.
CXD	1-1/4"	1-1/4" fine	1-1/4" ID	NW-5	Smooth transition for 1-1/4" hoses.
TXD	1-1/4"	50 mm contractor	1-1/4" ID	NW-32	Large threads to prevent galling.

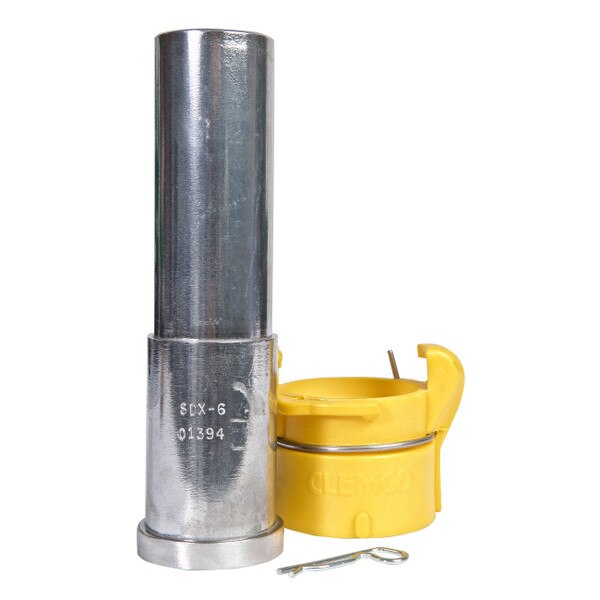

SDX	1-1/4"	Flanged	1-1/4" ID	N/A (Quick-coupling holder)	For quick attachment.

Operational Requirements

Nozzle size must match air supply (cfm), blast machine capacity, and hose/piping ID. Oversized nozzles cause low pressure and hose wear; undersized hinder media flow. Replace when orifice wears 1/16-inch beyond original size.

Operation

Insert the appropriate washer into the nozzle holder and screw in the nozzle (for threaded series) or attach via quick-coupling (for SDX). Direct the nozzle at the surface, maintaining 18-36 inches distance, and activate the remote control. Move smoothly with overlapping passes. Inspect daily and replace when worn.
