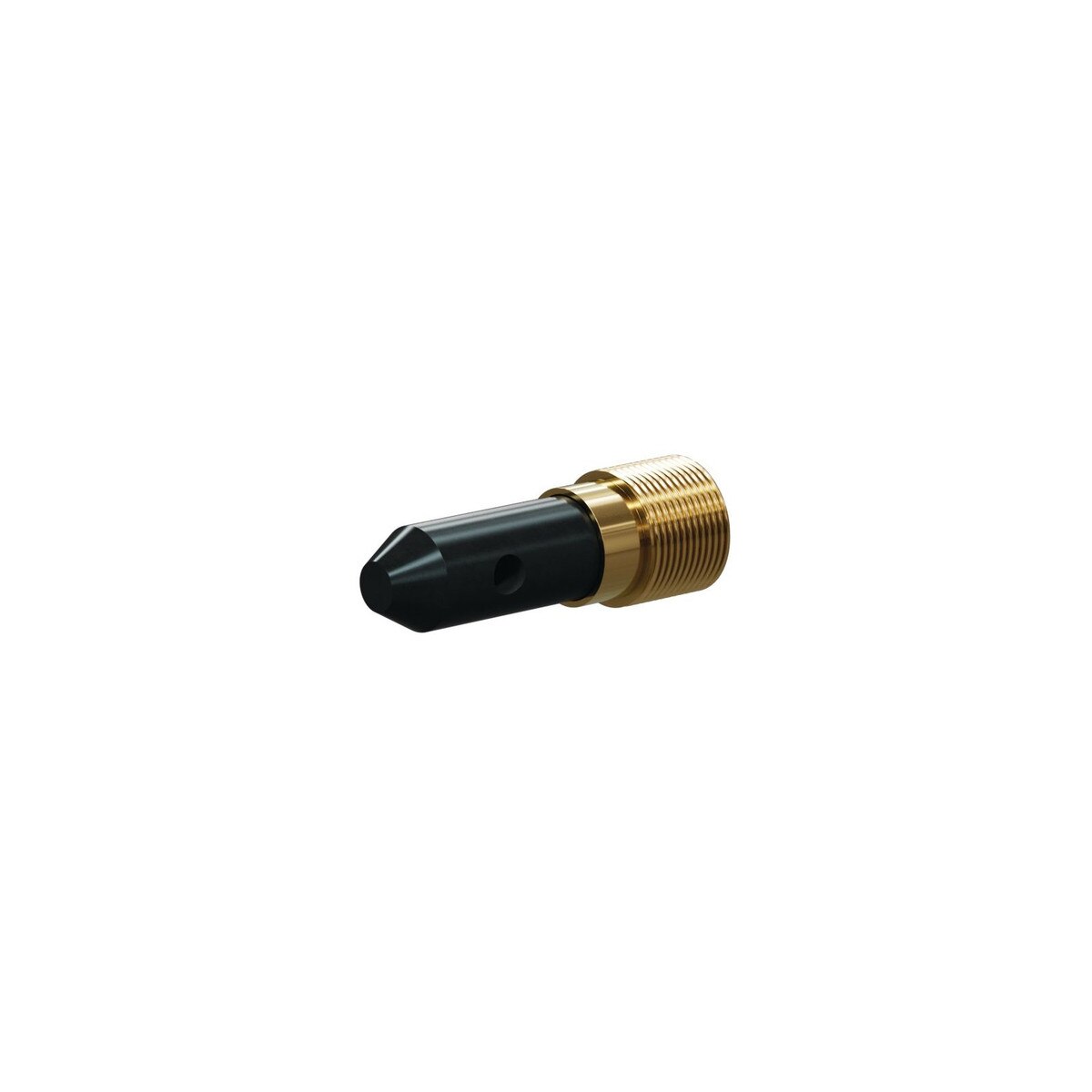

Kennametal Angle Nozzle, T190-23, (3) 1/8" Orifices, 90°,

Kennametal Angle Nozzle, T190-23, (3) 1/8" Orifices, 90°,

• These nozzles are excellent for getting inside tight places like bridge lattice, behind flanges or inside pipe.
• Available in tungsten carbide, boron carbide, ROCTEC® featuring long life blast outputs between 0° and 125° relative to the input openings.
• Available with single, double, triple or quadruple outlets.
• We have the capability to manufacture additional angle nozzle designs. Please contact us to discuss your requirements.
• Thread style: 3/8 – 18 N.P.S.M.
• Brass threads.
• Single, triple, or quad outlets.

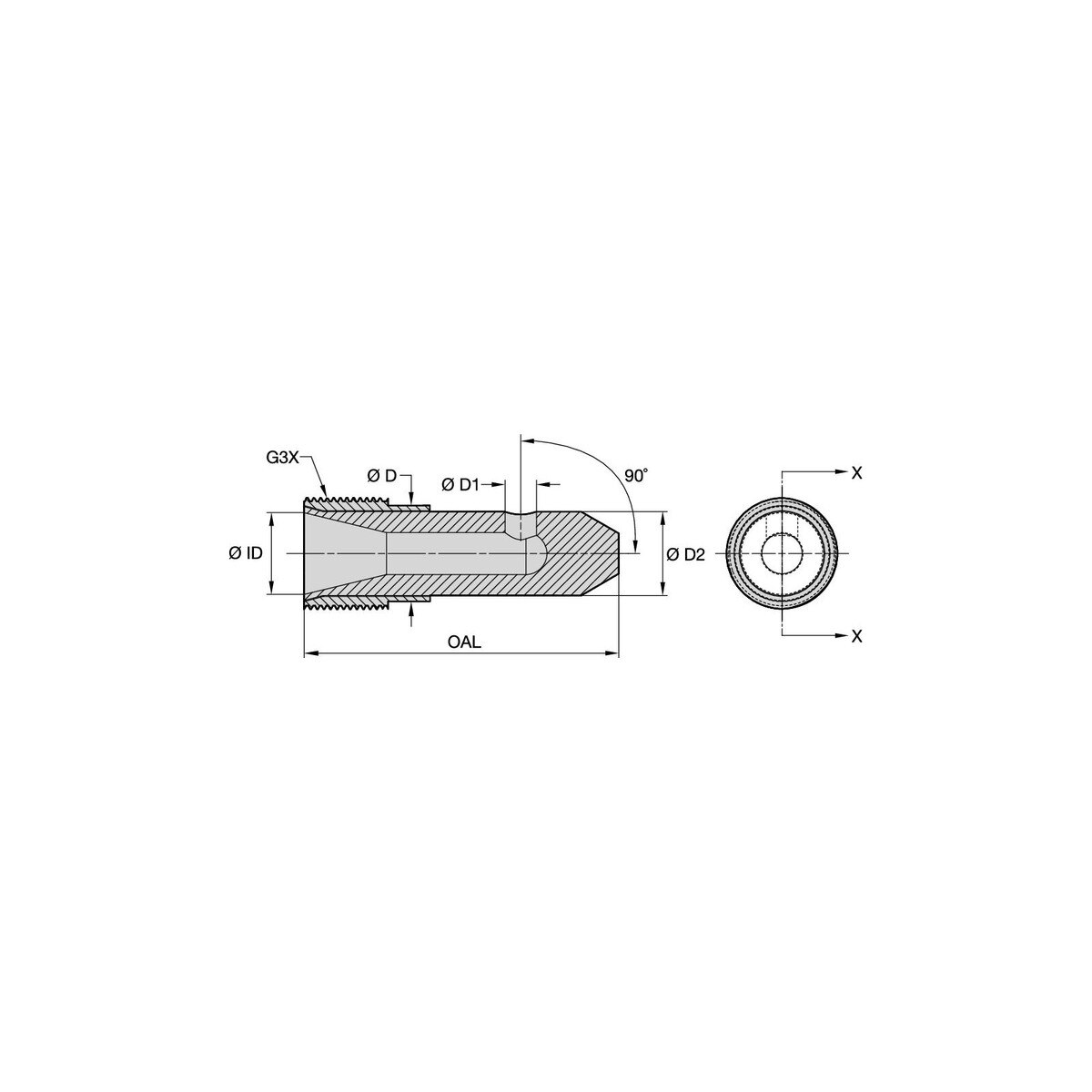

Specifications

• Orifice: 1/8"
• Overall length: 1-7/8"
• Body diameter: 1/2"
• Carbide grade: GP045
• 3/8" Brass Thread x 1-7/8" Length
• Kennametal order no: 2939462 · Catalog no: B1919023
