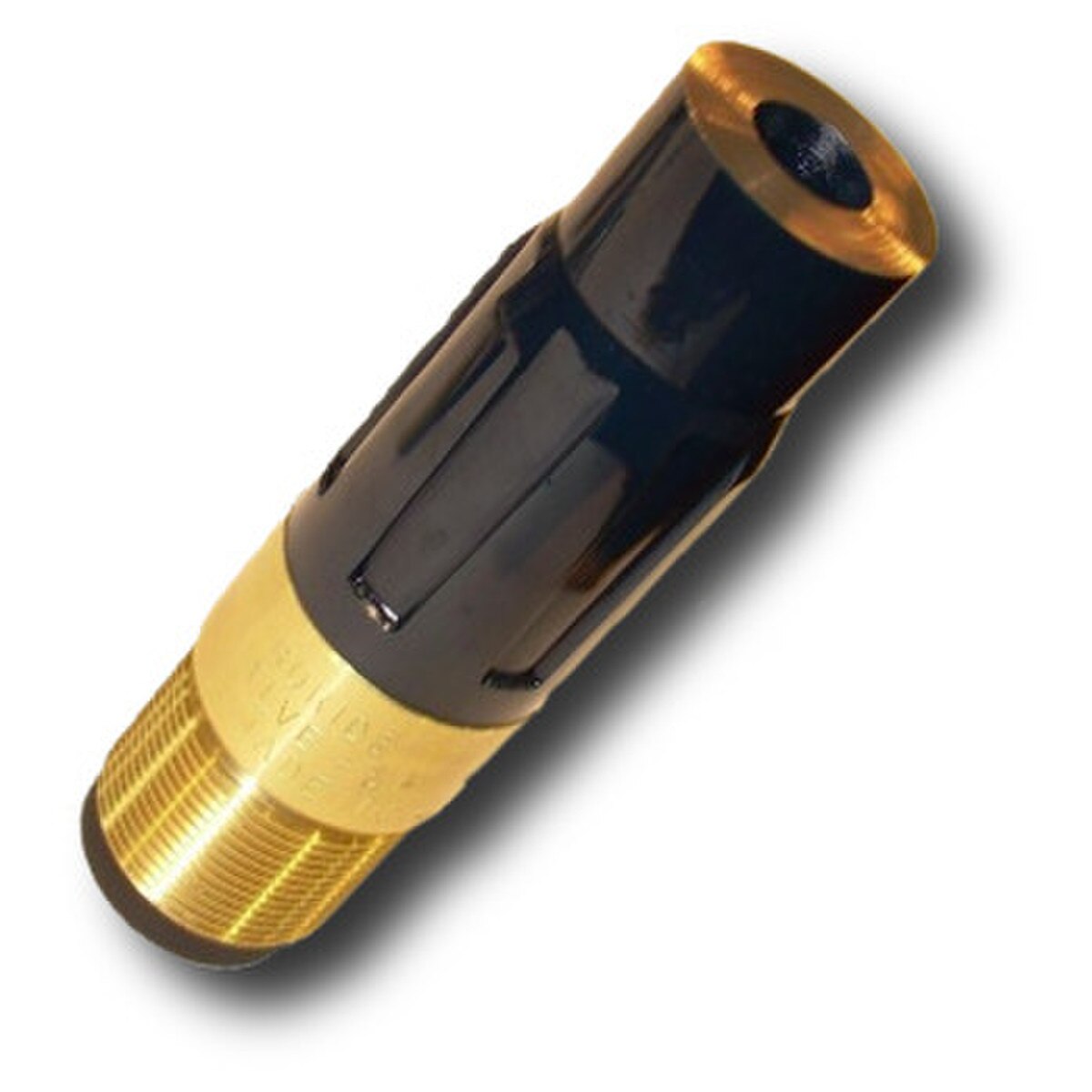

Kennametal Blast Nozzle, TLVE-4P, 1/4" Orifice x 5-1/2", TC

Kennametal Blast Nozzle, TLVE-4P, 1/4" Orifice x 5-1/2", TC

• Long venturi style nozzles yield about a 40% greater production rate than straight bore nozzles.
• The internally tapered design of the venturi nozzle accelerates and evenly distributes the abrasive over the entire blast pattern.
• These nozzles are designed for use with a 1" I.D. blast hose for maximum cutting action on hard-to-clean surfaces.
• Thread style: 1-1/4 – 11-1/2 N.P.S.M.
• For physically demanding operations.
• Less resistance against breakage.
• Brass threads.
• Reinforced polyurethane upper body.

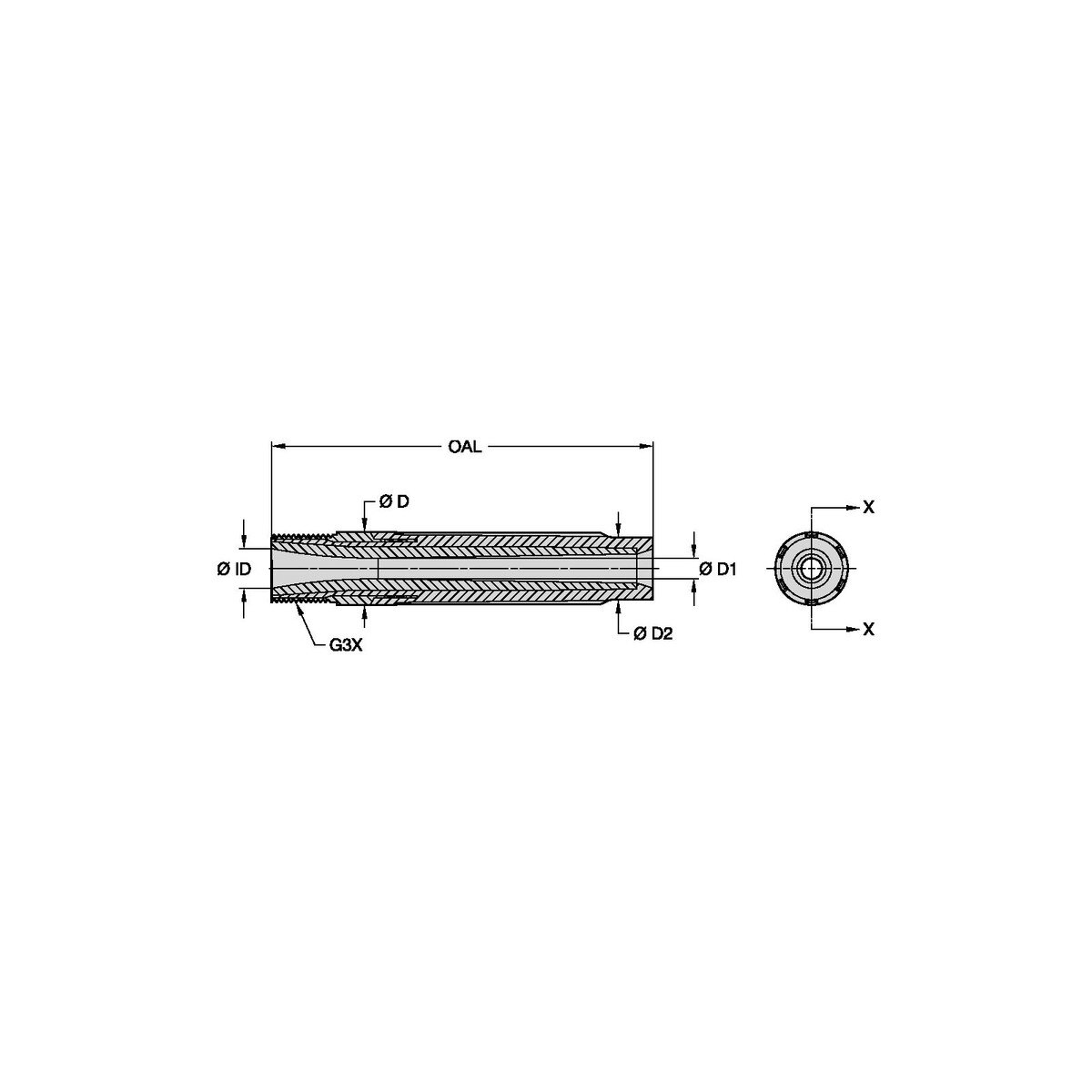

Specifications

• Orifice: 1/4"
• Overall length: 5-1/2"
• Body diameter: 1-3/4"
• Carbide grade: GP045
• 1" Entry, 1-1/4" Brass Thread
• Liner material: Tungsten Carbide
• Kennametal order no: 2939392 · Catalog no: B2015640
