Paint Booth Exhaust Filter, 20" x 20", Paint Pockets, (30/case)
Details

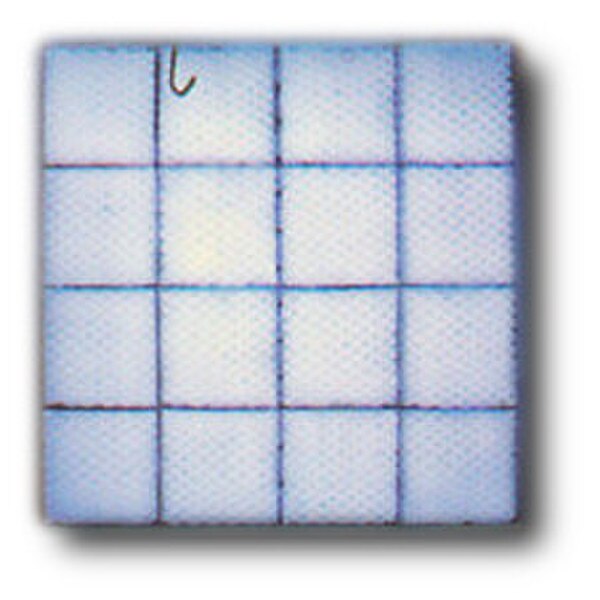

Paint Pockets® Overspray Arrestor
Paint Pockets® is a single-stage overspray arrestor for liquid and powder coating overspray in industrial, automotive and aerospace applications. Its three-dimensional "pockets" in the front face give more than twice the surface area of a flat pad, so the arrestor can capture and hold large quantities of overspray.
Features
- Arrests virtually all overspray: 99.84% overall arrestance, including the small 2.5 to 10 micron particles typical of spray finishing.
- Fewer filter changes: holds up to five times more overspray than other filters, cutting filter changes by up to 80%.
- Stable air flow: pockets collect overspray before airflow is noticeably restricted, helping keep transfer efficiency consistent.
- Low run-off: pockets help retain overspray, so there is less booth floor clean-up.
- Lower disposal costs: fewer changes means less waste, which matters most with hazardous waste.
- Strong when wet: superior wet tensile strength; loaded arrestors won't tear or sag.
Suitable for medium and high solids paints, powder coatings, water reduced paints, plural component coatings, stains and adhesives.
Specifications
| Size | 20" x 20" |
|---|---|
| Quantity | 30 per case |
| Manufacturer part no. | PP-020-020-030 |
| Overall arrestance efficiency | 99.84% |
| Holding capacity | Up to 6 lbs/sq ft |
| Maximum tested air velocity | 700 FPM |
| Initial pressure drop (@100 FPM) | 0.06 in W.C. |
| Maximum pressure drop | 1.00 in W.C. |
| Flammability rating | UL Class II |
| Construction | High loft, multi-ply, non-woven polyester |
Fractional arrestance efficiency
| Particle size | Efficiency |
|---|---|
| 20 microns | 100.0% |
| 10 microns | 99.8% |
| 5 microns | 84.5% |
| 2.5 microns | 4.2% |
Specifications are from the manufacturer and subject to change without notice.
