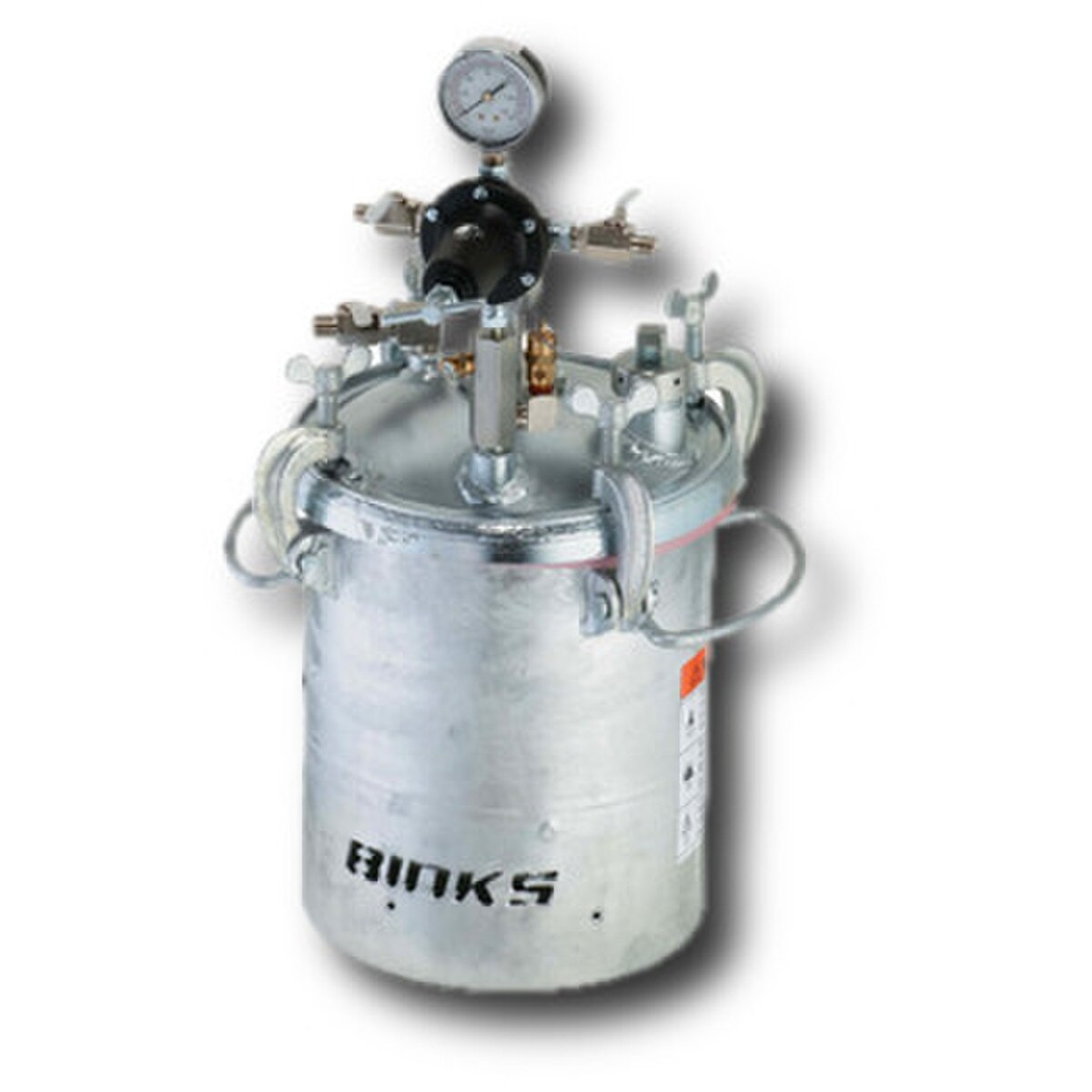

Galv Press Tank Ass'Y, 2-Gal Gear-Reduced Agitation, 2 Regulators

ASME certified 2 Gallon galvanized tank has an actual capacity of 2.8 gallons.

Name: 2 Gallon Galvanized
Part Number: 183G-2XX Series
Family: Galvanized Tanks
Type: Pressure Tank
Wetted Materials: Galvanized lid and tank shell
Air In: Air Inlet - 1/4" NPS
Fluid Out: Fluid Outlet - 3/8" NPS
Capacity: 2.8 Gallons - 183G-221 shown
Fits Pail Size: 1 Gallon Pail
Regulation: Single, Double or Extra Sensitive
Agitator: None, Standard (direct), or 15:1 Gear Reduced
Liners: PTL-78-K10 or K60
Bottom Outlet: Bottom Outlet Conversion Kit Available order 183-3000

Available Literature

• Sales Information
